Gas Spring Ball Stud
Gas spring ball studs are mounting fasteners with a spherical head that allow gas springs to pivot during operation. They provide secure attachment points, accommodate angular movement, and reduce stress on components, ensuring smooth motion and reliable performance in applications like lids, hoods, and access panels.

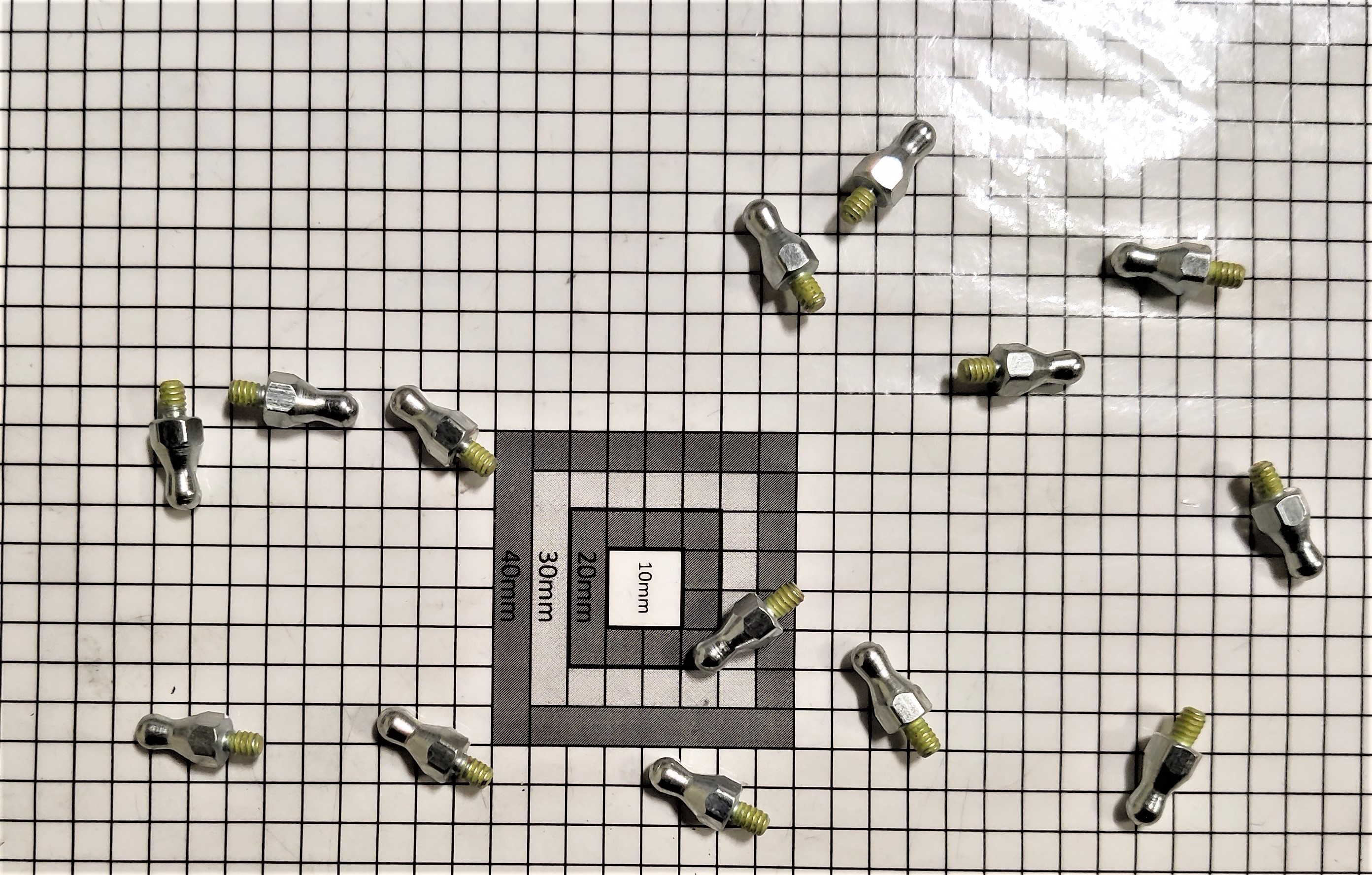

6-32 X .660 HEX MALE BALL STUD STL ZINC
6-32 X .660 HEX MALE BALL STUD STL ZINC .473 HEIGHT X .187 THRD LNGTH LYN-TRON # STB116-0.473-0.187-34 W/ LOCTITE DRI 201

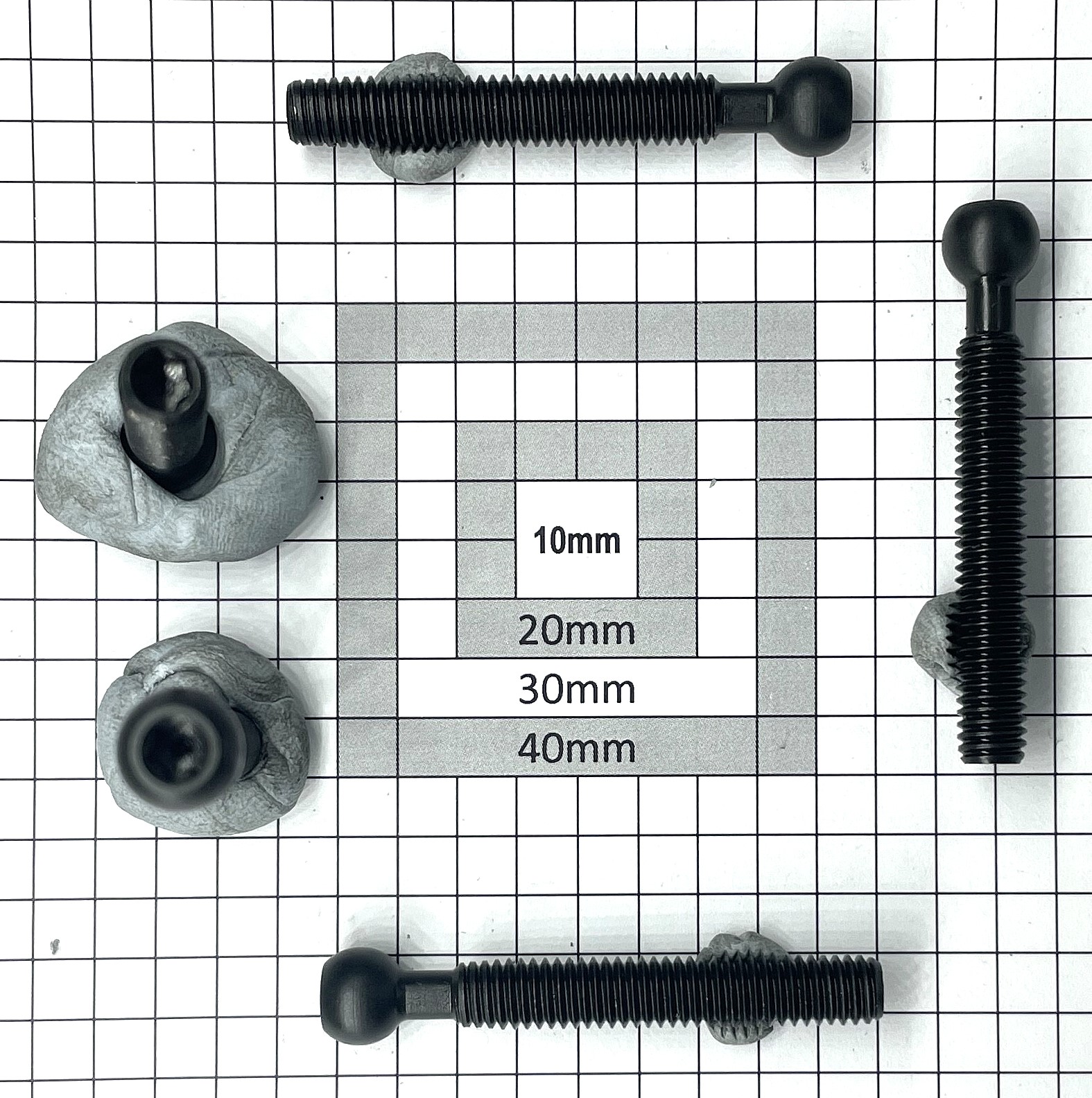

M6-1.0 X 45.9 BALL JOINT S/S BLACK OX
M6-1.0 X 45.9 BALL JOINT S/S BLACK OX 304L STAINLESS STEEL PER PRINT 705019336 REV. A TORX T20 ANNEALED WITH MIL-C-13924 CLASS 4 BLACK OXIDE

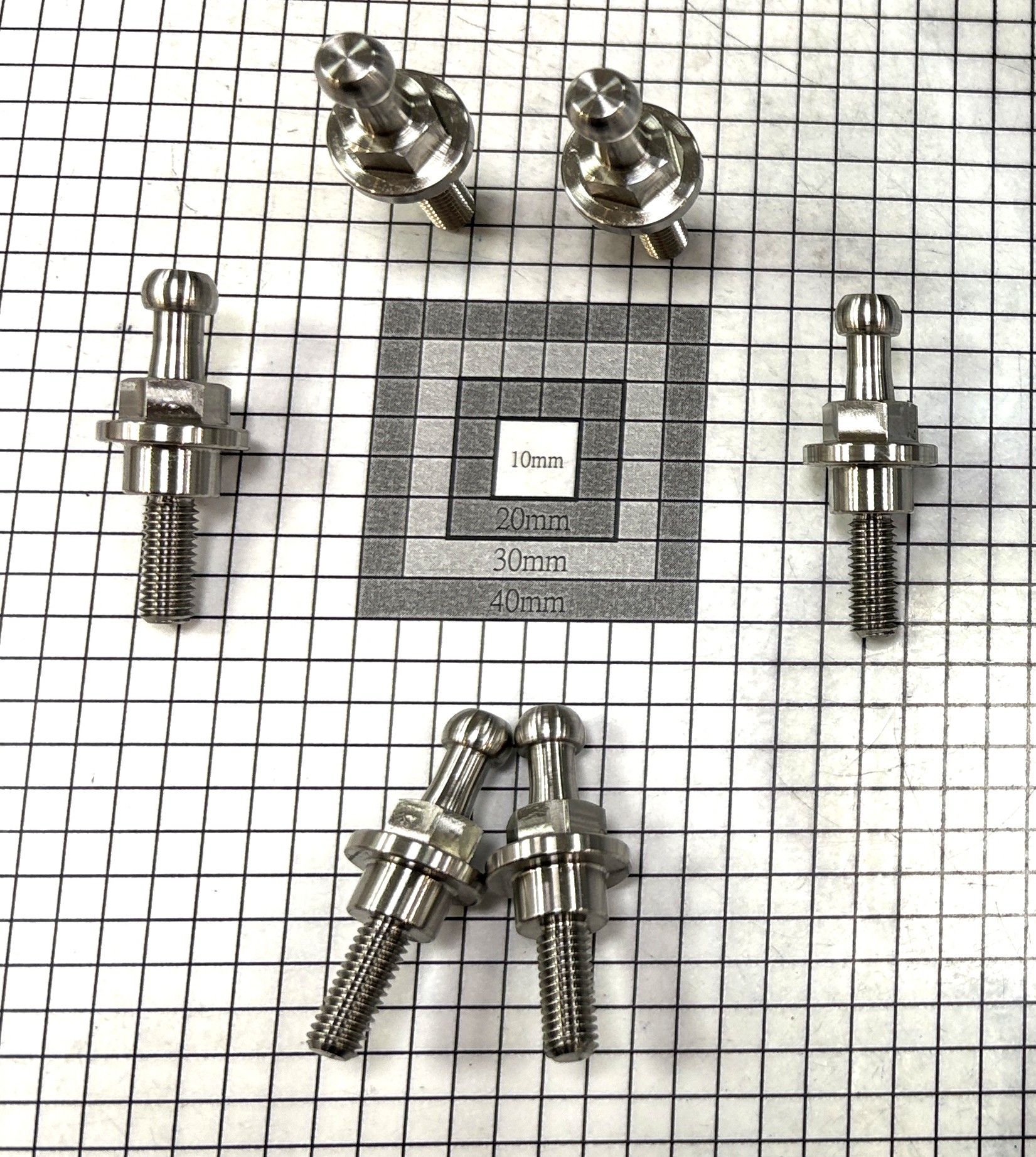

M6-1 X 40.9 BALL STUD S/S
M6-1 X 40.9 BALL STUD S/S PER PRINT 705020258 REV. INIT, ASTM-A276/A276M-17 304 STAINLESS STEEL
M8-1.25 X 73.9 BALL STUD STEEL BZN
M8-1.25 X 73.9 BALL STUD STEEL BZN STEEL 1045 OR S45C BLACK ZINC NICKEL Cr3+ 8µm MIN PER ASTM F1941M-07 Fe/Zn-Ni 8ET/F PER PRINT # 705802033 REV. A 220 HRS TO WHITE/840 HOURS TO RED
